Electron Microscopy Core Facility

The facility provides advanced expertise in electron microscopy, from sample preparation to image analysis, for a wide variety of biological samples.

The EMCF activities cover a large spectrum of EM techniques with a major focus on sample preparation, immuno-localisation of proteins, ultrastructural analysis in 2D and 3D, correlative light and electron microscopy and data processing.

Edit

Overview

The EMCF provides advanced expertise in cellular electron microscopy (EM): from sample preparation to image analysis and for a large variety of biological samples ranging from bacterial cells to (small) multicellular organisms. Our main focus is on ultrastructural analysis in 2D and 3D, immuno-EM and correlative multimodal imaging, combining EM with light microscopy (CLEM), and X-ray microscopy (CXEM) or both (CLXEM). Our staff can help you define optimal experimental conditions for your project.

One of our strengths is the on-section CLEM technique, which tracks the signal of fluorescent proteins in resin sections with high precision. We have used this method for a number of studies (Groza et al. 2024, Schreier et al. 2022) and published a detailed step-by-step video tutorial on this method.We are also hosting an international course covering the methodology every second year.

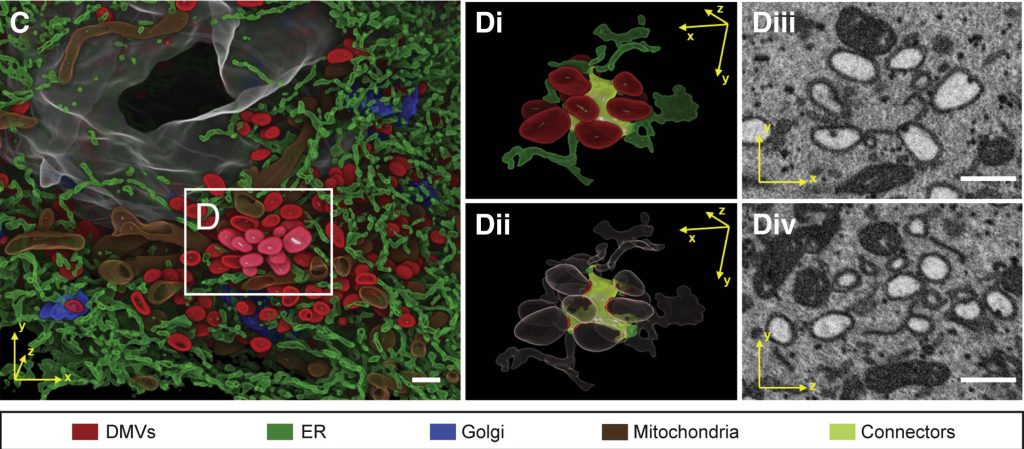

Our facility is also exploiting different volume EM techniques such as serial block face – scanning electron microscopy (SBF-SEM) and focused ion beam – scanning electron microscopy (FIB-SEM), to visualize the 3D ultrastructure of organelles at nanometer resolution across micron scales. For the precise targeting of the ROI in a 3D volume, we are routinely using correlative approaches combining light (see below) and X-ray imaging together with EM. The X-ray imaging is done in the facility with a tabletop system and when going for higher resolution in collaboration with Liz Duke on the EMBL beamline P14 at the PETRA III synchrotron in Hamburg.

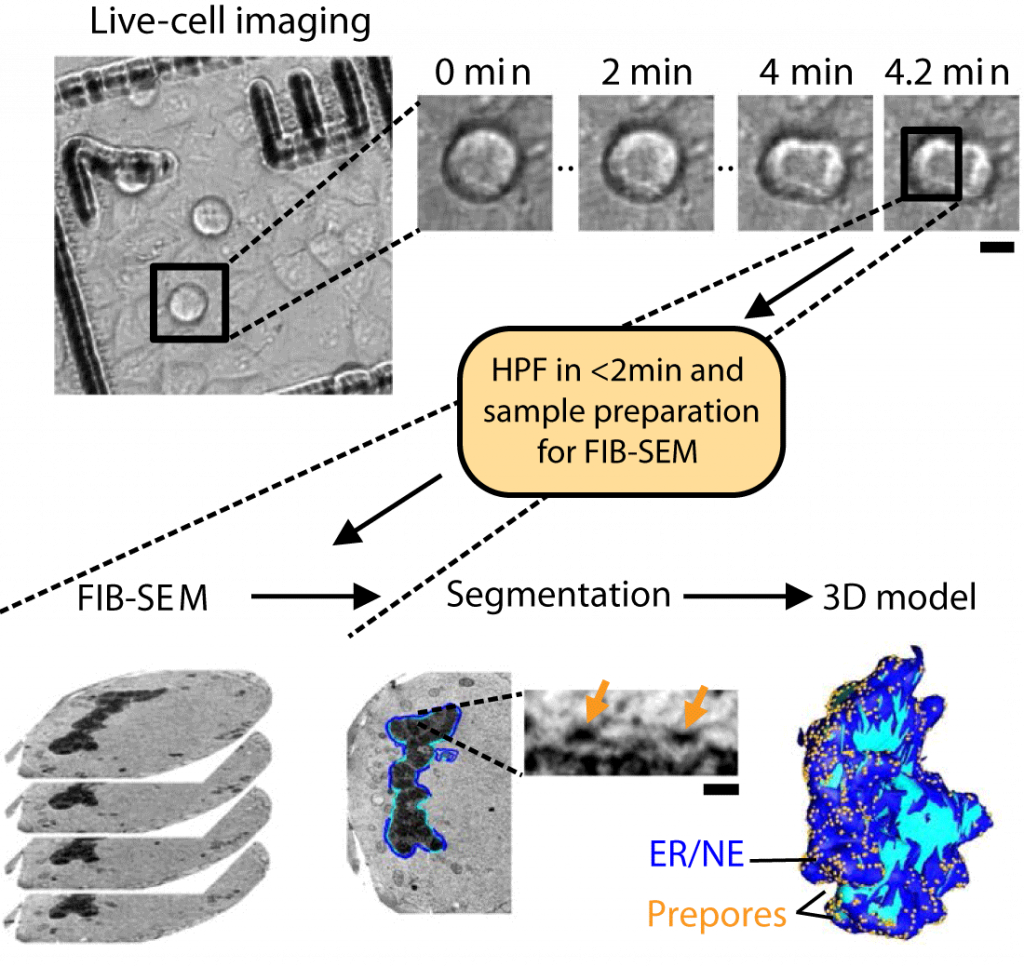

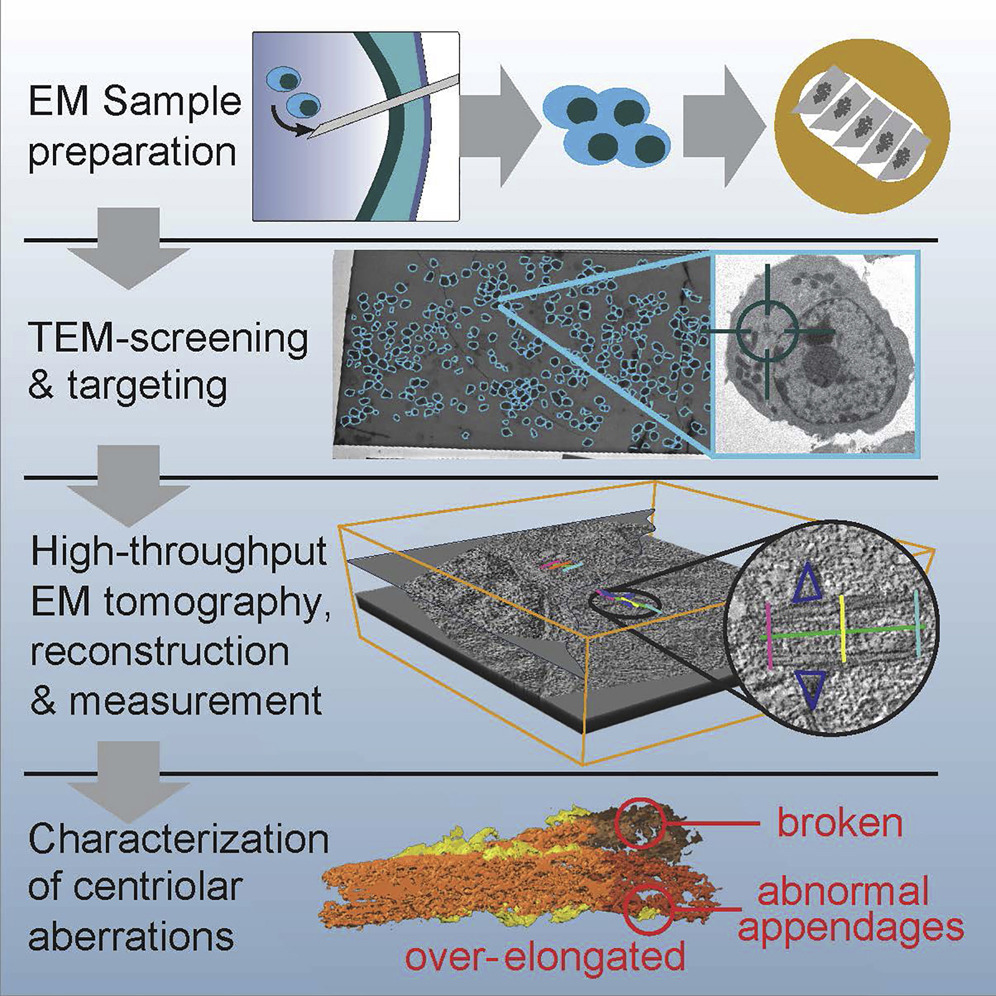

We are also involved in method development, which is heavily connected to our collaborations with groups here at the EMBL. An example of this is the development of a high-precision targeting methods for volume electron microscopy, together with the Ephrussi, Jechlinger, Leptin and Mahamid groups (Ronchi et al., 2021). The strategy relies on fluorescence preservation during sample preparation and targeted trimming guided by confocal maps of the fluorescence signal in the resin block. Laser branding is used to create landmarks on the block surface to position the FIB-SEM acquisition.

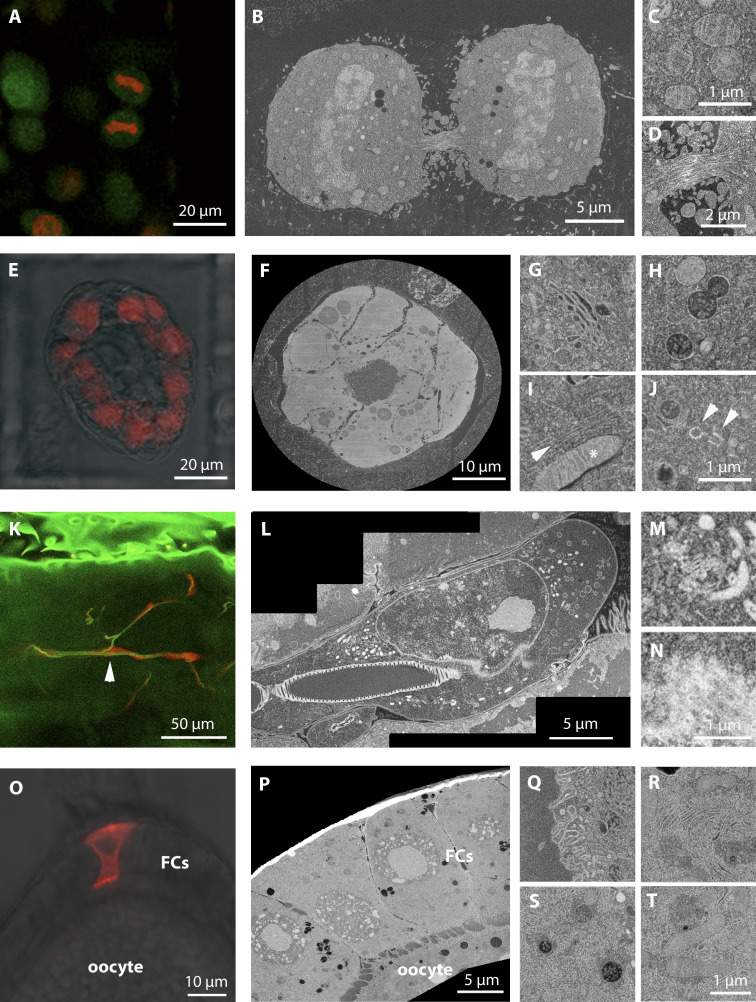

Fluorescent molecules can be preserved within in many different specimens and targeted in the FIBSEM. Each row displays a confocal image with its corresponding FIBSEM image to the right of it. The far right panels show details of the structure of the organelles within the sample. Adapted from Ronchi et al., 2021.
3D targeting of fluorescent labeled nuclei inside an organoid.

Services provided

Techniques

  • Negative staining
  • Chemical fixation, high pressure freezing of cells and multi-cellular specimens.
  • Ultramicrotomy (including serial sectioning).
  • Cryo-ultramicrotomy (for the Tokuyasu technique)

Training

  • Training users on all the accessible techniques.
  • Organising courses and lectures on EM methods in cell biology.
  • Job shadowing.

Please note that single-particle and tomography cryo-EM for structural biology projects are offered through the cryo-EM service platform and the EMBL IC

Orthoslices through the volume and rendering of some representative structures in a photosynthetic dinoflagellate. (Mocaer et al., 2023)

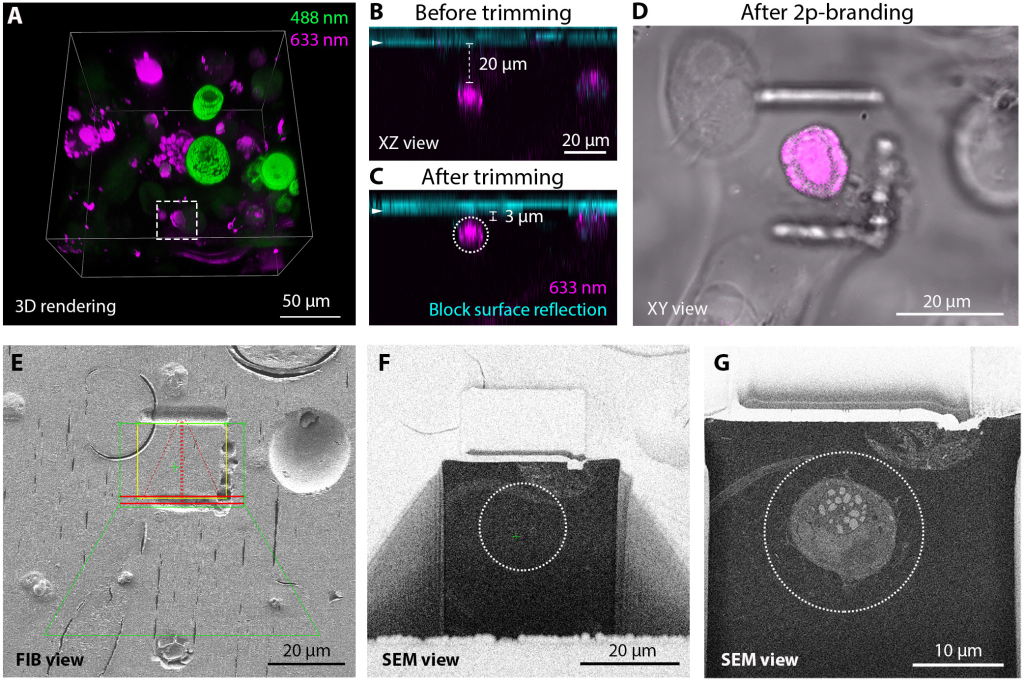

Targeting a photosynthetic dinoflagellate. The resin block was imaged in the confocal microscope, the cell of interest was branded and the distance between the cell and the block surface could be measured for precise targeting with the ultramicrotome. (Mocaer et al., 2023)

.

Recent publications

Recent work

Life-cycle-coupled evolution of mitosis in close relatives of animals

Shah H, Olivetta M, Bhickta C, Ronchi P, Trupinić M, Tromer EC, Tolić IM, Schwab Y, Dudin O and Dey G. Nature., 2024 Jun;630(8015):116-122.

Targeted volume correlative light and electron microscopy of an environmental marine microorganism

Mocaer K, Mizzon G, Gunkel M, Halavatyi A, Steyer A, Oorschot V, Schorb M, Le Kieffre C, Yee DP, Chevalier F, Gallet B, Decelle J, Schwab Y and Ronchi P. J Cell Sci., 2023 Aug 1;136(15):jcs261355.

Profiling cellular diversity in sponges informs animal cell type and nervous system evolution.

Musser JM, Schippers KJ, Nickel M, Mizzon G, Kohn AB, Pape C, Ronchi P, Papadopoulos N, Tarashansky AJ, Hammel JU, Wolf F, Liang C, Hernández-Plaza A, Cantalapiedra CP, Achim K, Schieber NL, Pan L, Ruperti F, Francis WR, Vargas S, Kling S, Renkert M, Polikarpov M, Bourenkov G, Feuda R, Gaspar I, Burkhardt P, Wang B, Bork P, Beck M, Schneider TR, Kreshuk A, Wörheide G, Huerta-Cepas J, Schwab Y, Moroz LL, Arendt D. Science. 2021 Nov 5;374(6568):717-723.

High-precision targeting workflow for volume electron microscopy.

Ronchi P, Mizzon G, Machado P, D’Imprima E, Best BT, Cassella L, Schnorrenberg S, Montero MG, Jechlinger M, Ephrussi A, Leptin M, Mahamid J, Schwab Y. J Cell Biol. 2021 Sep 6;220(9):e202104069.

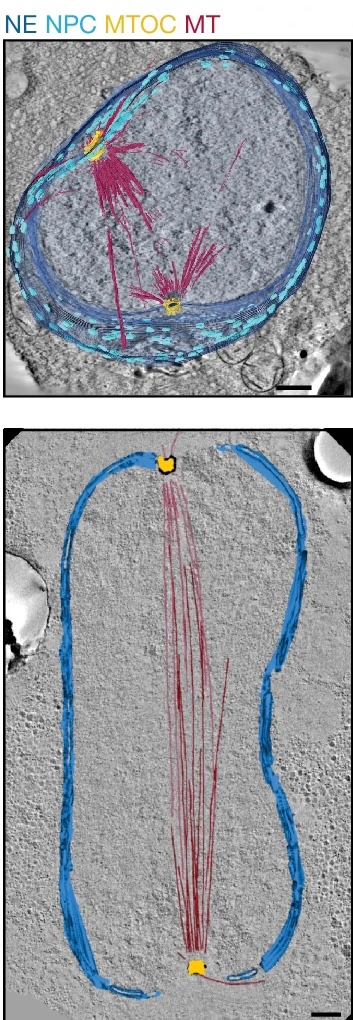

Single slice from a representative electron tomogram volume of early (top) and late dumbbell-shaped (bottom) S. arctica mitotic nuclei overlaid with a 3D model showing the intranuclear spindle. Scale bar 500nm. Shah H. et al., 2024

Visiting the EMCF

Visiting the EMCF

If you would like to apply as a visitor in the EMCF, please contact us at emcf@embl.de including a short overview of your project. We’ll discuss the feasibility of your project internally and in case of a positive evaluation we will contact you for a more detailed meeting over the phone, via Zoom or video conference.

The EMCF currently participates in several initiatives supporting visitor access:

Euro-BioImaging open access

The EMCF is part of the EMBL node in Euro-BioImaging, together with the Advanced Light Microscopy Facility (ALMF) at EMBL Heidelberg and the Mesoscopic Imaging Facility (MIF) at EMBL Barcelona. The EMBL node offers open access to a broad range of state-of-the-art technologies in biological imaging for life scientists.

Christian Boulin fellowship

The Fellowships support travel and accommodation costs of young scientists visiting EMBL Core Facilities at the different EMBL sites.

EMBL Corporate Partnership Programme Fellowships

The Corporate Partnership Programme continues to provide financial support for scientists to train and collaborate in EMBL research groups and core facilities.

EMBO Core Facility Fellowships

EMBO is currently offering fellowships to support international exchange and training of staff working in a core facility.
